Atmospheric Honda Catch Tank (Fuse Box Location)

CAD Designed and Laser Cut Battery Located (RHD) Atmospheric Oil Catch Tanks for Civic EG and Integra DC2 Chassis

Making the most of the space behind the turret it allows these tanks to have a huge 3.38L capacity, making them MSA compliant (Circuit Raced) for both K20 and K24 powered swapped vehicles, as anything over 2000cc your required to have a minimum of 3L in oil catch tank capacity.

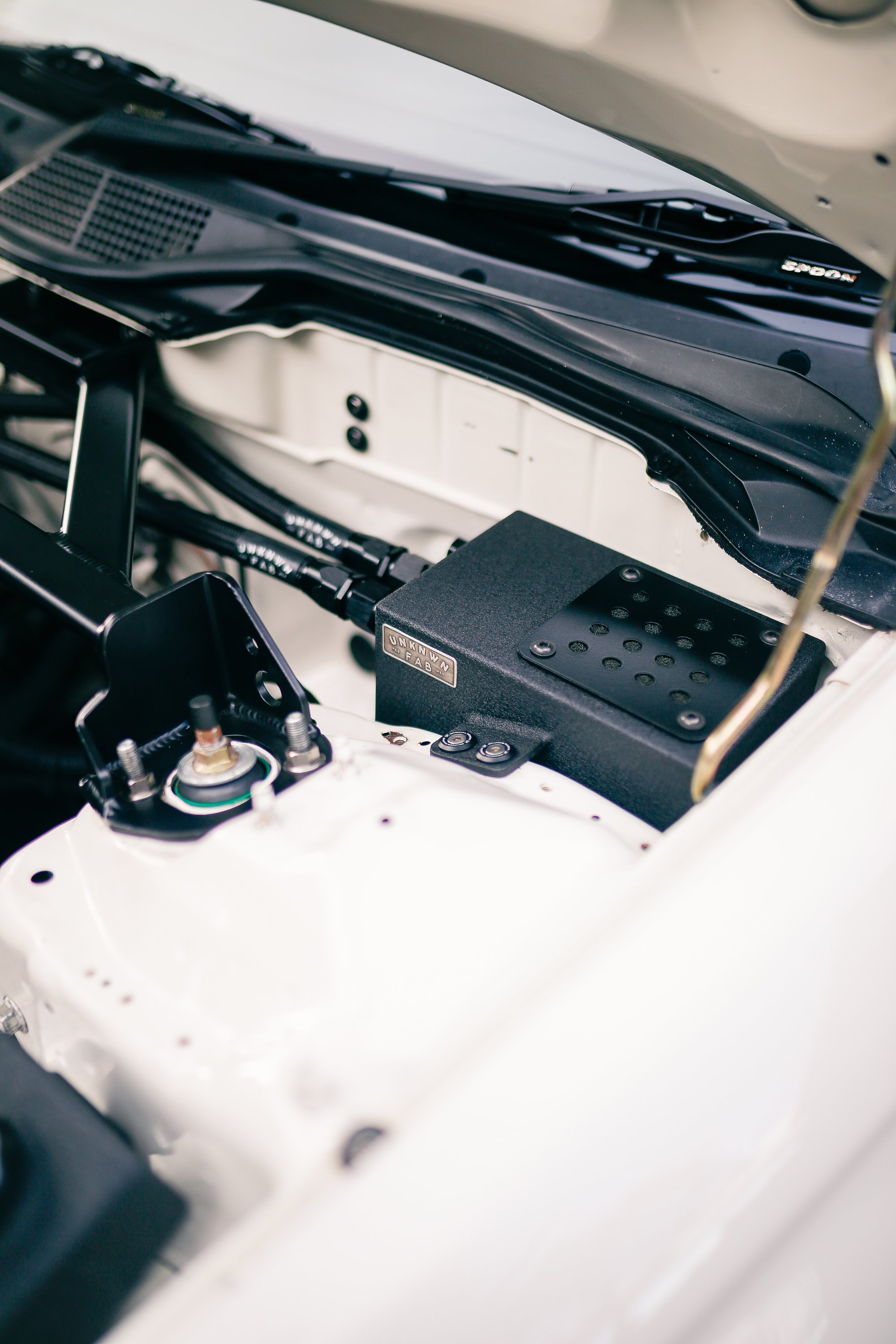

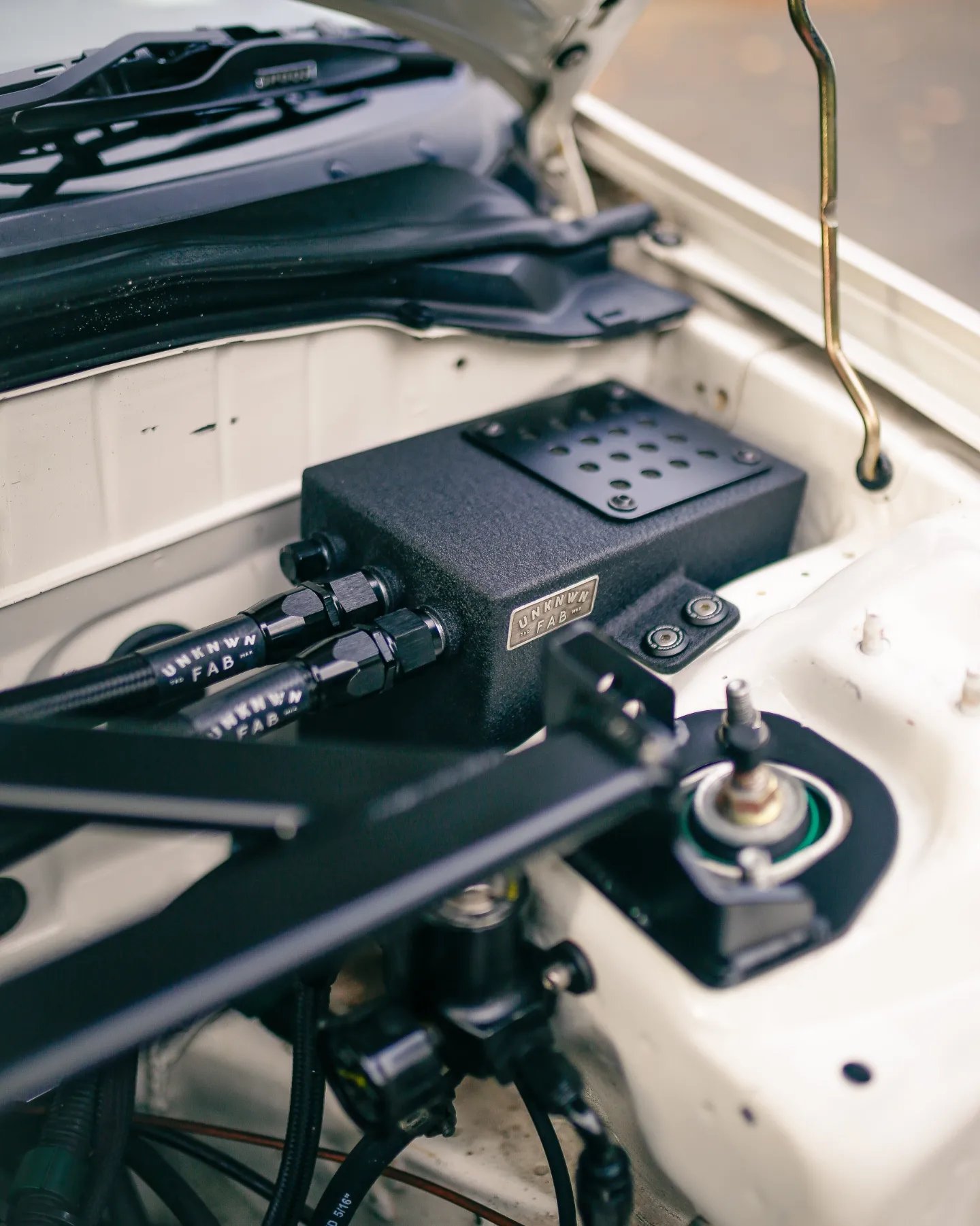

The tank locates where the OEM battery and fuse box is. So they will need to be relocated, for example battery in the spare wheel well and fusebox just the other side of the bulk head in the cabin.

X2 Male AN10 fittings
X1 Female AN6 drain (plug/blank included)
Baffle plated internals
Replaceable/Cleanable foam panel filter

These can however be customised if you wish, IE more or less fittings, larger fittings, so please email if changes are required so I can amend the pricing to suit.

These are also available as a full kit, which consists of

AN10 converted Rocker Cover
AN lines pre made to suit
An10 Atmospheric Catch Tank
